Hose Replacement Simplified: Your Essential Guide
With different hose lengths and diameters to choose from, our step-by-step guide will make the process a breeze. From measuring the correct hose length to proper installation, this guide has you covered.
Resource Details
Three Key Takeaways:
1. Correct Measurement: Most pool connections require a hose with 6 ft length and 1 1/2” diameter. However, it's best to measure the distance between your equipment pieces to determine the right hose length.
2. Preparation: Shutting off water flow from both the skimmer and return side is crucial before beginning. If you don’t have shut off valves, use a Hayward 1022 black cap or rags to prevent water from pouring out.
3. Proper Installation: Attach the new hose by sliding the clamp over the hose cuff, connecting it to the fitting, and tightening the clamp. Be cautious not to overtighten the clamp.
Step-by-Step Process:
1. Measure the distance between your equipment pieces to determine the right hose length needed.
2. Turn the shut off valve handles to the side so that the water flow is stopped from both the skimmer and return side.
3. If you don’t have shut off valves, use a Hayward 1022 black cap or rags to stop the water from pouring out when the hoses are removed.
4. Loosen the clamps on both ends of the hose for easy removal.

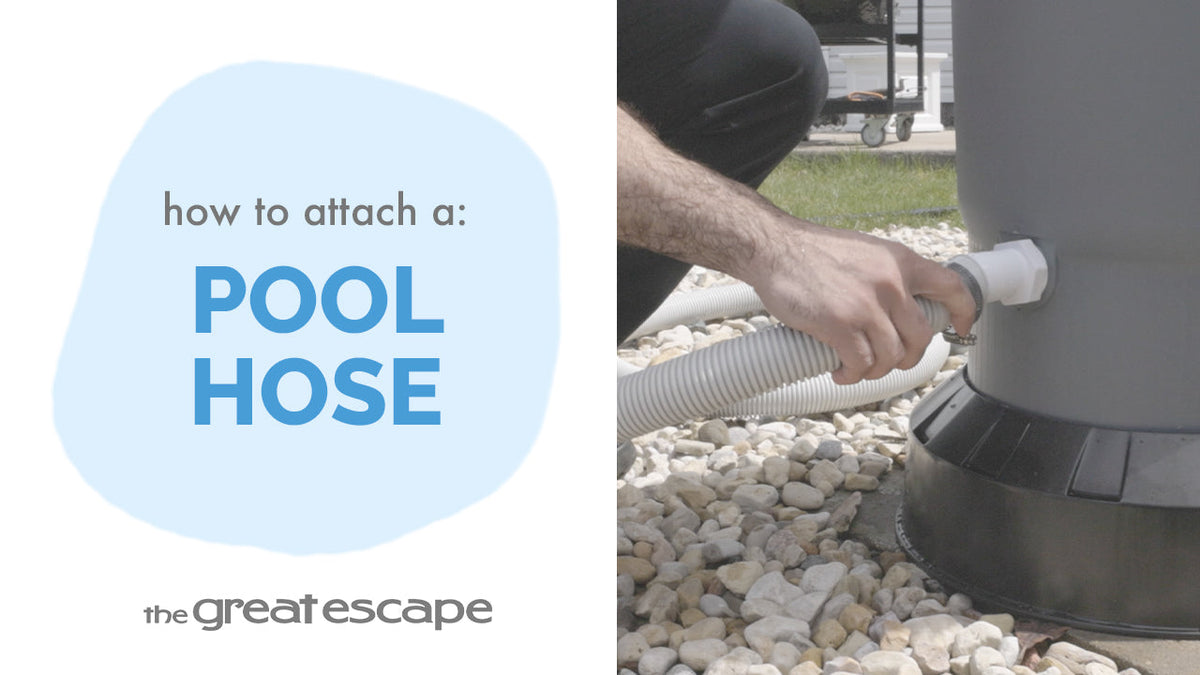

5. Slide the hose clamp over the cuff of the new hose and connect the hose to the fitting, letting the ring fit loosely over it.
6. Slide the clamp to the middle of the cuff and tighten the screw located on the top of the clamp using a flat head screwdriver. Remember, avoid overtightening.
7. Repeat this process on the opposite end of the hose to complete a secure connection.
