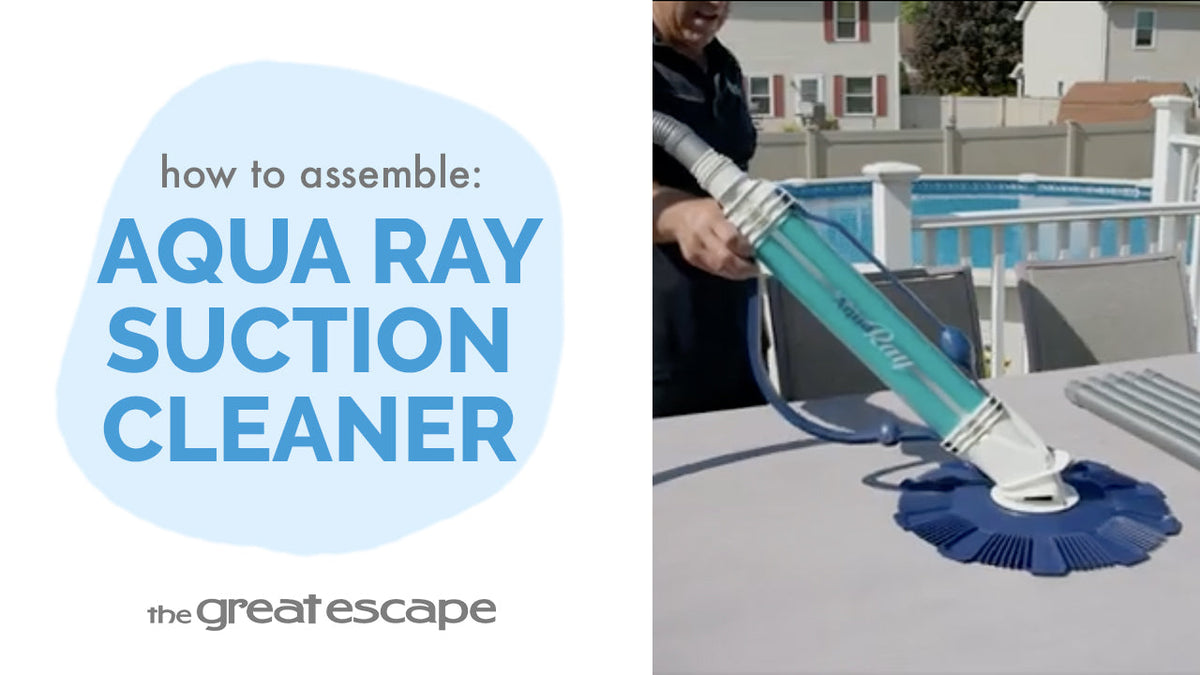

A Quick Guide on How to Assemble Your Hayward Aqua Ray Cleaner
In this video tutorial, we’ll walk you through the simple steps to properly assemble your Hayward Aqua Ray cleaner. Whether you're setting it up for the first time or just need a refresher, follow along to ensure your automatic cleaner is ready to keep your pool sparkling clean.
Resource Details
Key Takeaways:
1. The Aqua Ray cleaner comes with enough hose to fit a 24' pool, with additional hose extensions available if needed.
2. Assembling the disc and deflector correctly ensures smooth operation.
3. Each hose section should be inserted with a twisting motion to secure it properly.
Step-by-Step Process:
1. Slide the Disc into Place: Start by sliding the disc down the cleaner body, ensuring that the side marked "UP" is facing up. Pull and flex the disc until it's fully inserted into the foot grooves.
2. Check the Disc Movement: Ensure that the disc rotates easily once it is installed.
3. Install the Handle and Deflector: Flex and insert each end of the handle into the slots on the front of the cleaner body. Repeat this step to install the deflector on the backside, making sure the weight is positioned toward the bottom of the cleaner.
4. Connect the Hoses: Begin with one hose section, twisting it slowly until it’s fully inserted into the cleaner body. Continue this process with the remaining hoses to complete the setup.
