How to Install a Hayward Aqua Ray Flow Diverter – A Quick and Easy Guide

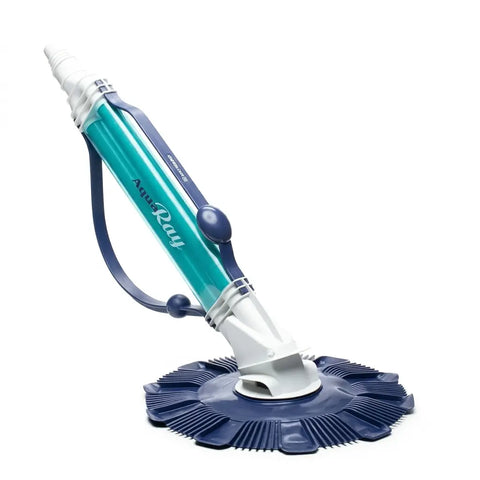

In this video, we’ll guide you through the quick and easy process of installing a Hayward Aqua Ray flow diverter. This handy tool helps direct water flow, ensuring your Aqua Ray cleaner covers the entire pool area. Follow along to learn how to optimize your pool cleaner’s performance!
Resource Details
Key Takeaways:
1. Installing a flow diverter can help improve pool coverage by your Aqua Ray cleaner.
2. Proper positioning of the diverter ensures efficient water flow.
3. The diverter is easy to install and requires no special tools.
Step-by-Step Process:
1. Start by removing the Hayward eyeball from the return. Turn the lock ring counterclockwise to loosen it.
2. Once the lock ring and eyeball are detached, insert the flow diverter into the return.
3. Slide the lock ring over the diverter and tighten it by turning counterclockwise.
4. Ensure the diverter is turned sideways and facing away from the skimmer opening to improve flow direction. 5. You’ve successfully installed the Hayward Aqua Ray flow diverter!
