How to Remove Panels from Your Jacuzzi 300 Series Spa
Need to reach your spa’s internal components? Whether you're performing maintenance or troubleshooting, this guide will walk you through the safe way to remove panels from your Jacuzzi 300 Series hot tub—without damaging a thing.
Resource Details
Key Takeaways:
1. Always start with the corners before tackling the front panel.
2. Use both hands and gentle force to avoid cracking or damaging clips.
3. Watch out for attached light wires when removing panels.
Step-by-Step Process:

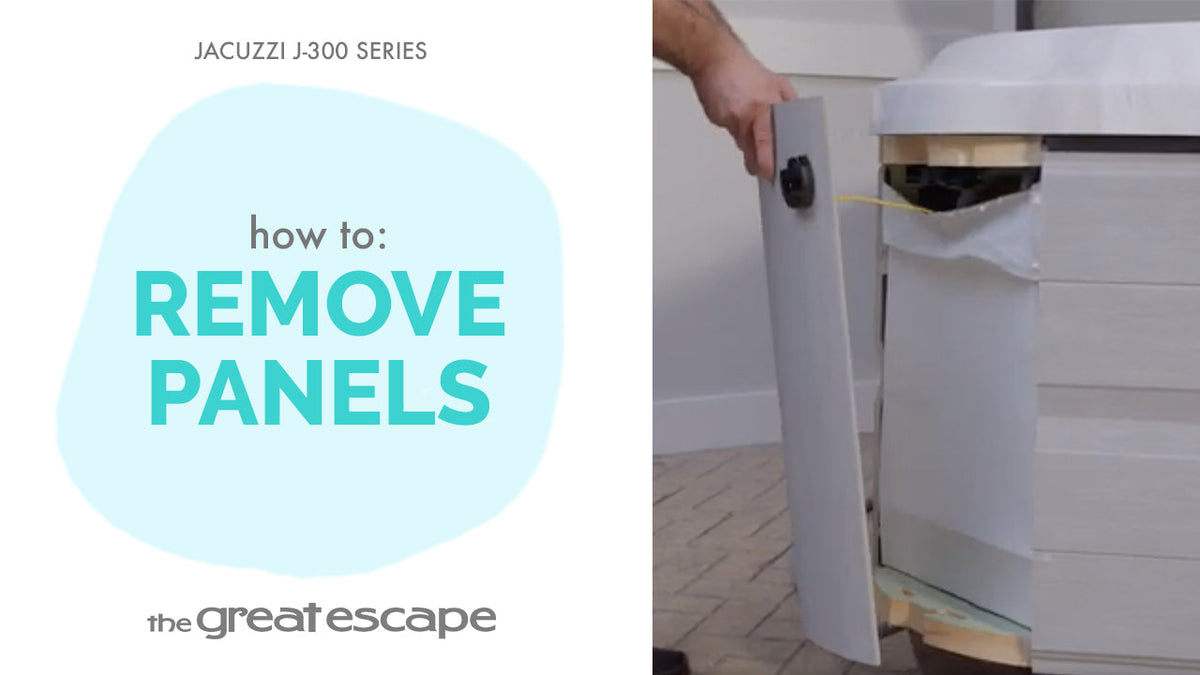

1. Begin with a corner panel—grip the top edge with both hands.
2. Gently pull until the panel releases from the clips.
3. Tilt it forward and lift to remove, being mindful of any light wires.
4. For the front panel, lift from the bottom and pull straight out—avoid angling to prevent clip damage.
5. Set panels aside safely to avoid scratches or cracks.
Resources and Explanations:
1. Holding Clips: These secure your panels in place—pulling too hard or at an angle can damage them.
2. Light Wires: Some panels are connected to low-voltage lighting—disconnect with care if needed.
3. Maintenance Tip: Removing panels gives access to components like the pump, heater, and control box.
