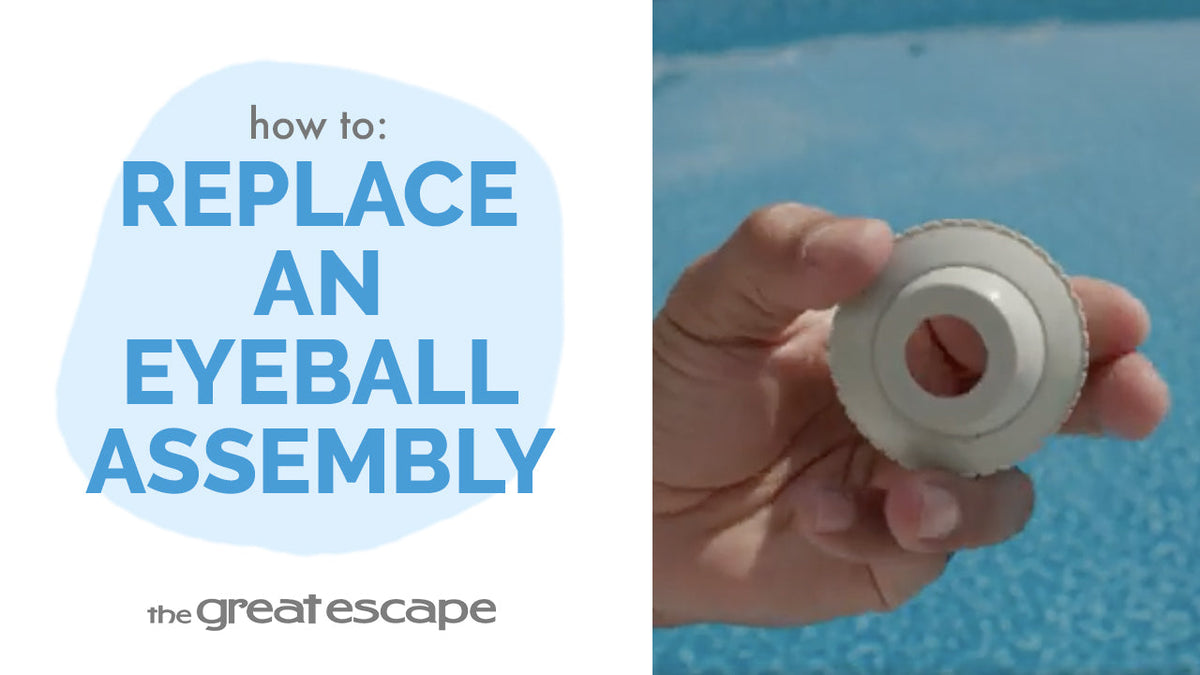

How to Replace a Hayward Eyeball Assembly in 5 Easy Steps
In this quick tutorial, The Great Escape shows you how to replace a Hayward eyeball assembly. Follow these simple steps to ensure your pool’s return flow is functioning properly and get your pool ready for the season.
Resource Details
Key Takeaways:
1. Replacing the eyeball assembly ensures optimal return flow in your pool.
2. The process is straightforward but may require a removal tool for tight fittings.
3. Correctly positioning the eyeball is key for directing water flow.
Step-by-Step Process:
1. Remove the Old Eyeball Assembly: Turn the lock ring and eyeball counterclockwise to detach them.
2. Remove the Inner Eyeball Fitting: If it’s tight, use the seat removal tool by inserting the key into the grooves and turning counterclockwise.
3. Install the New Inner Fitting: Turn the new fitting clockwise until fully tightened.
4. Insert the New Eyeball: Loosely attach the lock ring over the eyeball by turning it clockwise.
5. Position the Eyeball: Push the eyeball into the desired position and retighten the lock ring.
