How to Replace Hayward Return Gaskets: A Step-by-Step Guide
In this quick tutorial, The Great Escape shows you how to replace Hayward return gaskets to ensure a secure and watertight seal. Follow along with these easy steps to keep your pool functioning at its best.
Resource Details
Key Takeaways:
1. Replacing the return gaskets prevents leaks and maintains a tight seal.
2. The process requires lowering the water level and safely removing the old gaskets.
3. Proper installation of new gaskets is crucial for a leak-free return assembly.
Step-by-Step Process:
1. Lower the Water Level: Begin by lowering the water below the return jet.
2. Remove the Eyeball Assembly* Turn the lockring and eyeball counterclockwise to detach them.
3. Remove the Inner Fitting: If needed, use the seat removal tool to loosen the inner fitting and remove it by hand.

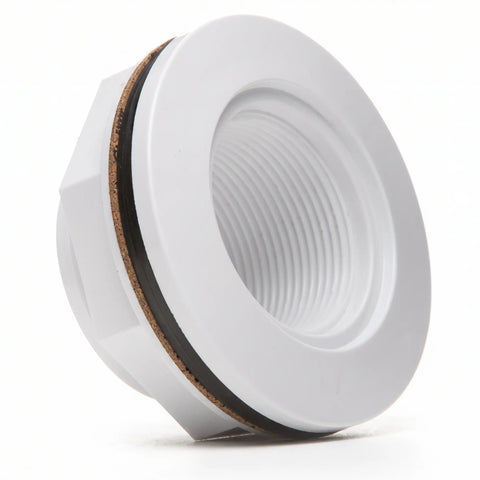

4. Remove the Old Return Assembly and Gaskets: Secure the return fitting inside the pool, then use channel locks to loosen the outside lock nut and remove the old gaskets.

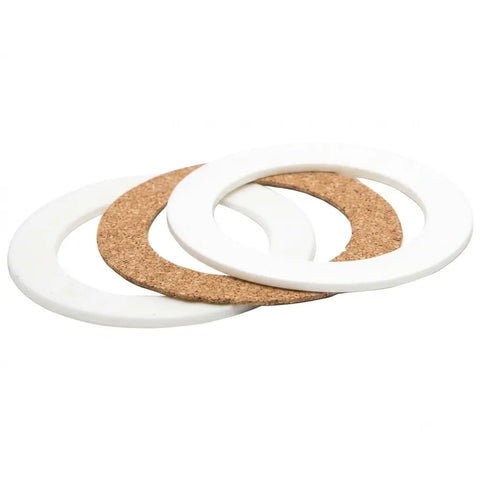

5. Install the New Gaskets: Place the first rubber gasket over the threads inside the pool, followed by the second rubber gasket and cork gasket on the outside. Tighten the lock nut securely.
6. Reassemble the Eyeball: Install the new inner fitting, position the eyeball, and tighten the lock ring.
